Thermal Scopes

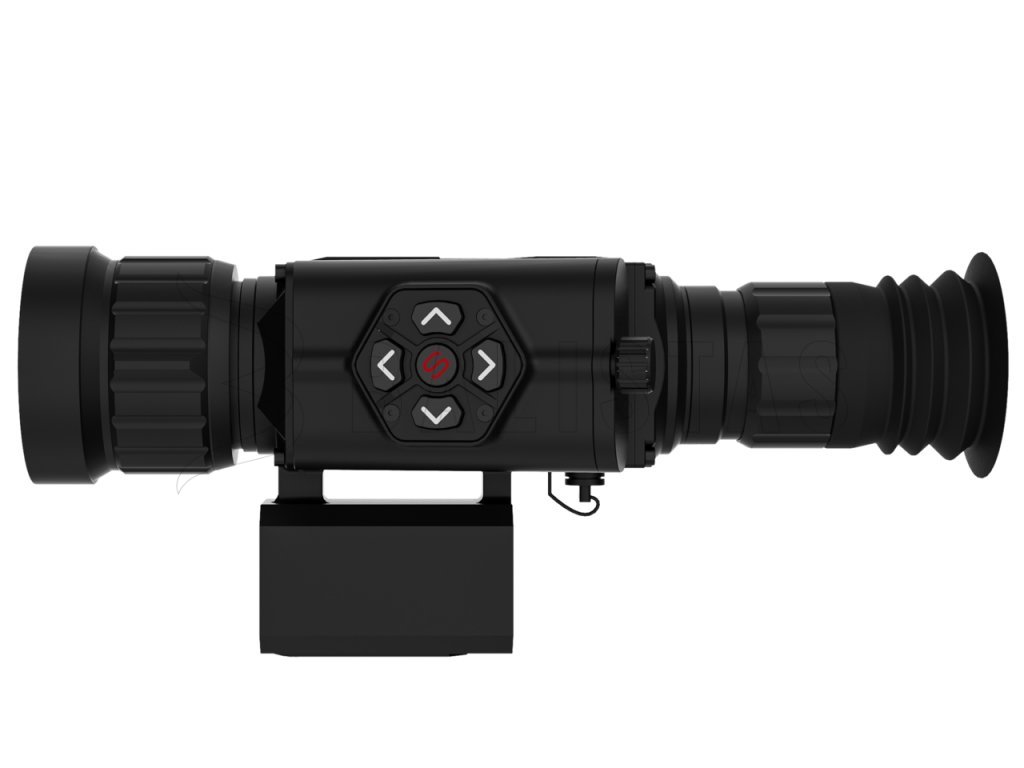

Thermal imaging scope Senopex DOT A5 LRF

Senopex DOT A5 LRF is an advanced thermal imaging scope with a laser rangefinder that combines high quality hardware with a range of cutting-edge technologies and features. The thermovision offers up to 9 various image modes and can detect a human-sized object up to 2400m away with its 50mm lens and highly sensitive 384×288px thermal core. All of that is protected by a compact yet extremely durable housing made of aerospace grade aluminum.
More Info

Objective Lens Diamater

Thermal Core Resolution

Temporarily Unavailable

€ 1 468.0

Send an email notification to

By setting up the Watchdog, you agree to the processing of your personal data

    • Secure shopping and payment
    • Fast delivery to many EU countries
    • Risk free 30 Day Returns
    • -20% on selected product in the loyalty program
    • Customers rate us 4.4/5 on Trustpilot
    • Excellent customer support from specialists
Detection Range:
2400 m
Refresh Rate:
50 Hz
Objective Lens Diamater:
50 mm
Thermal Core Resolution:
384x288 px

Show More Specs

Warranty:
24 Months
Manufacturer:
Senopex
EAN:
TN42MM19
Item ID:
TN42MM19

Senopex More from this manufacturer

Similar Products

Experts on Airguns and Archery

PRODUCT DESCRIPTION

The Senopex DOT A5 series thermal imaging scope features a 50mm lens with a 4.5x optical zoom, 1024x768px 50Hz OLED display with 8x digital zoom and a high quality 12μm core with 384x288px resolution and thermal sensitivity NETD <35mk (the smaller the value, the more sensitive). Due to its superior sensitivity, the scope can detect a human-sized object at an impressive distance of up to 2400m and is suitable even for visibility affecting weather conditions, such as rain, fog, or snow.

To maximize the potential of thermovision, the scope utilizes a number of cutting edge technologies and features, such as a Target Engancement algorithm that increases the brightness of hot targets while maintaining the temperature level of other objects. This results in a higher contrast between the target and the surroundings, making hot objects easier to spot. The picture-in-picture and hot spot tracking functions are of course also included. All photos and videos can be stored on the built-in 32GB memory module.

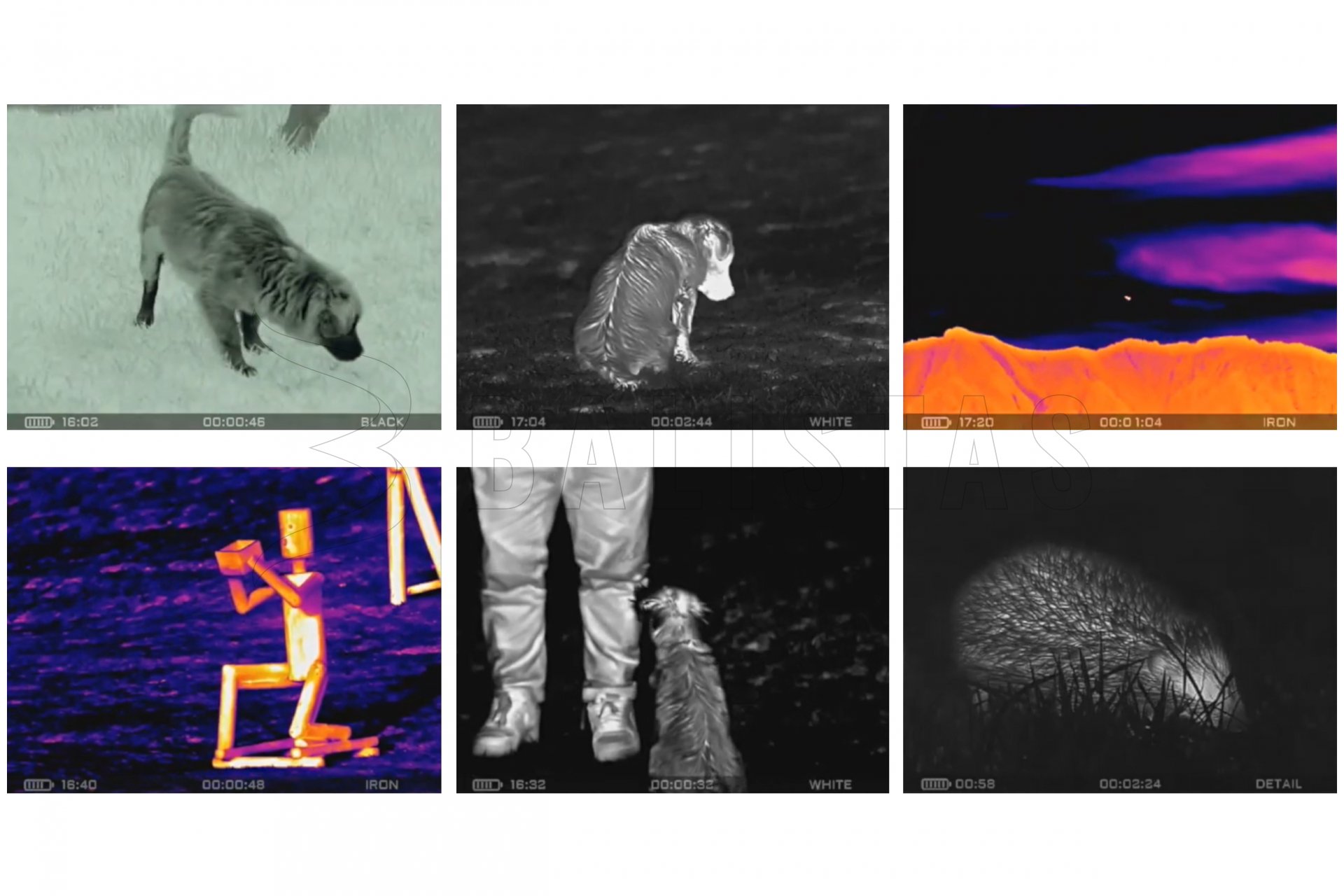

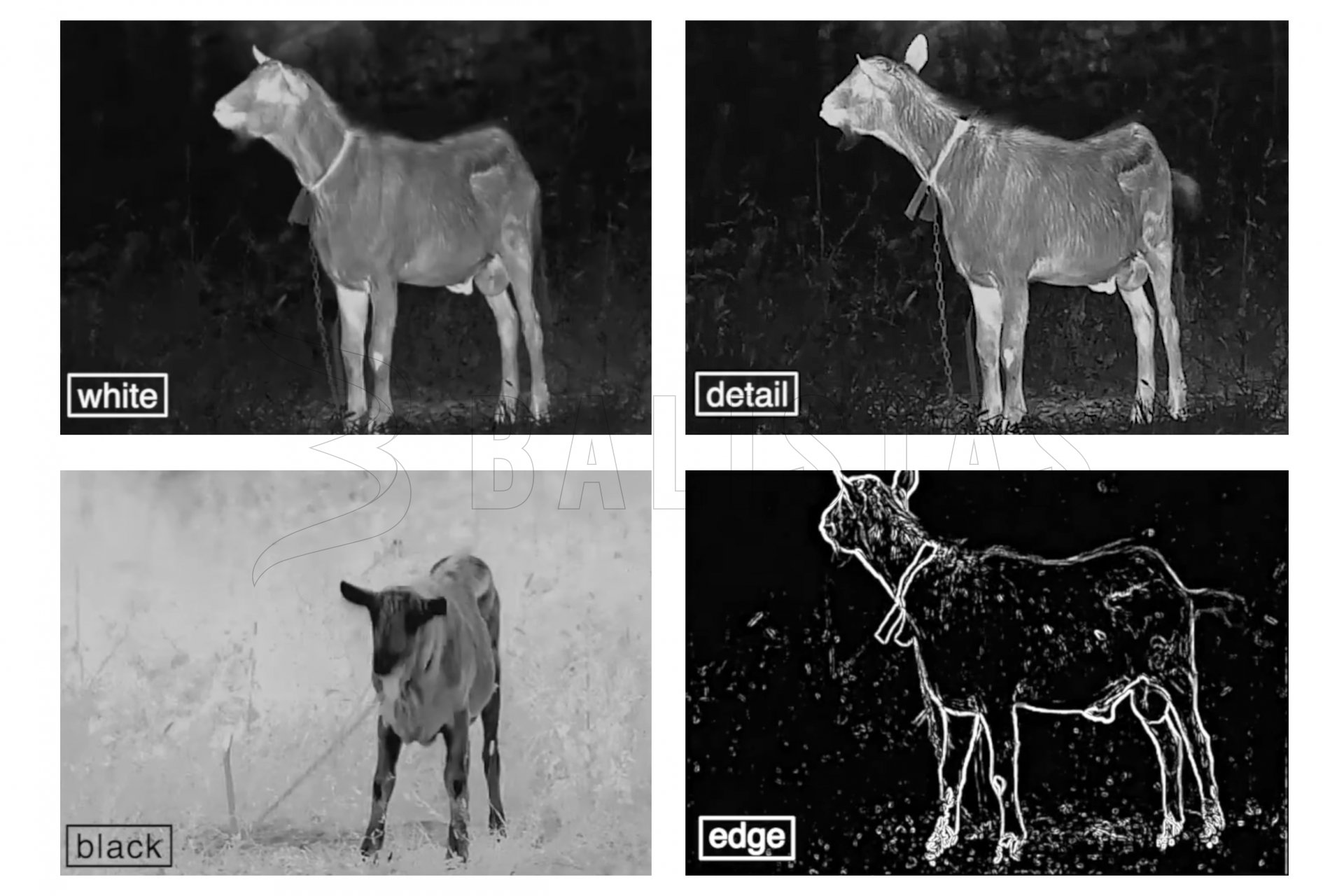

The device also offers up to 9 image modes - White, Black, Iron, Boost, Detail, Background, Assassin, Equator and Edge. The most noteworthy modes are:

  • Detail mode - enhances overall image sharpness
  • Assassin mode - reduces the brightness of the surrounding environment for easier target acquisition
  • Equator mode - makes it easier to detect hot objects on a hot surface
  • Edge mode - displays only the outline of the target, reducing the eye strain

You can switch among 6 scalable crosshairs, or turn them off completely. The screen also displays battery status, digital compass and roll/pitch indicators.

The whole IP67 rated housing is made of 7075 and 6061 aerospace grade aluminum, making the scope withstand high recoil of up to 1200G.

The device is powered by 2 18650 batteries, which can keep the scope operating for up to impressive 14 hours. You can also save energy by enabling the auto shutdown feature when idle, with a customizable time limit.

The LRF version features a precise laser rangefinder with an effective range of up to 1000 metres.

Package contents

  • Senopex DOT A5 LRF
  • Weaver / Picatinny mount
  • 2x 18650 battery
  • Charger for 18650 batteries
  • 2in1 7-pin cable
  • Optics cleaning cloth
  • Stylish 16GB USB 3.0 Flash Drive
  • Warranty Card
  • Case

Downloadable Files

This Product Is Listed in the Following Categories

Videos (1)

Senopex DOT Series

Senopex DOT Series

Parameters

Manufacturer:
Senopex
Maximum Memory Size:
32 GB
Display Diameter:
1024x768 px
Waterproof:
Yes
Dimensions:
251x91x70 mm
Display Size:
0.5 in
Weight:
706 g
Detection Range: ?
2400 m
Material:
Aluminium
Mount:
Yes to 22mm
Refresh Rate: ?
50 Hz
Objective Lens Diamater: ?
50 mm
Thermal Core Resolution: ?
384x288 px
Battery Type:
Li-Ion 18650
Battery Runtime:
14 h
Angle of View:
5.3x4 °
Magnification:
4.5 x
Rangefinder:
Yes
Warranty:
24 Months
