Invisible fence Dogtrace d-fence 202 white

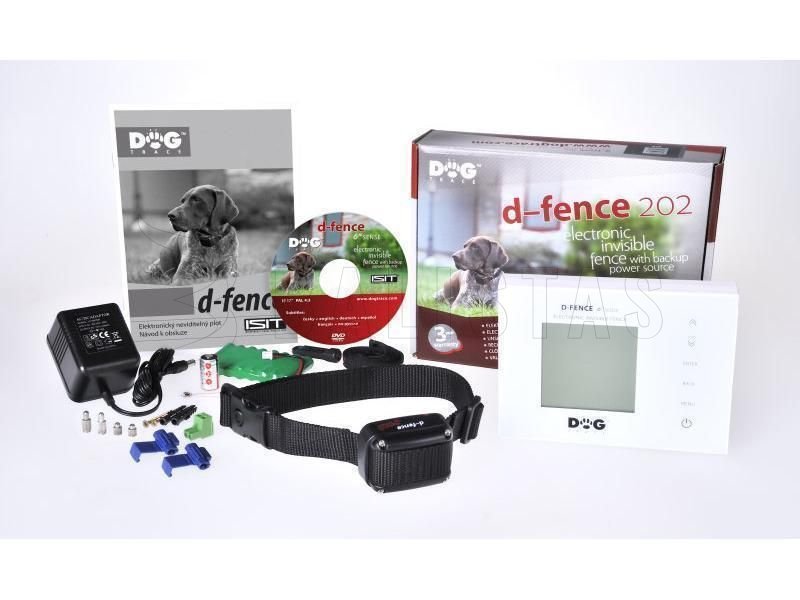

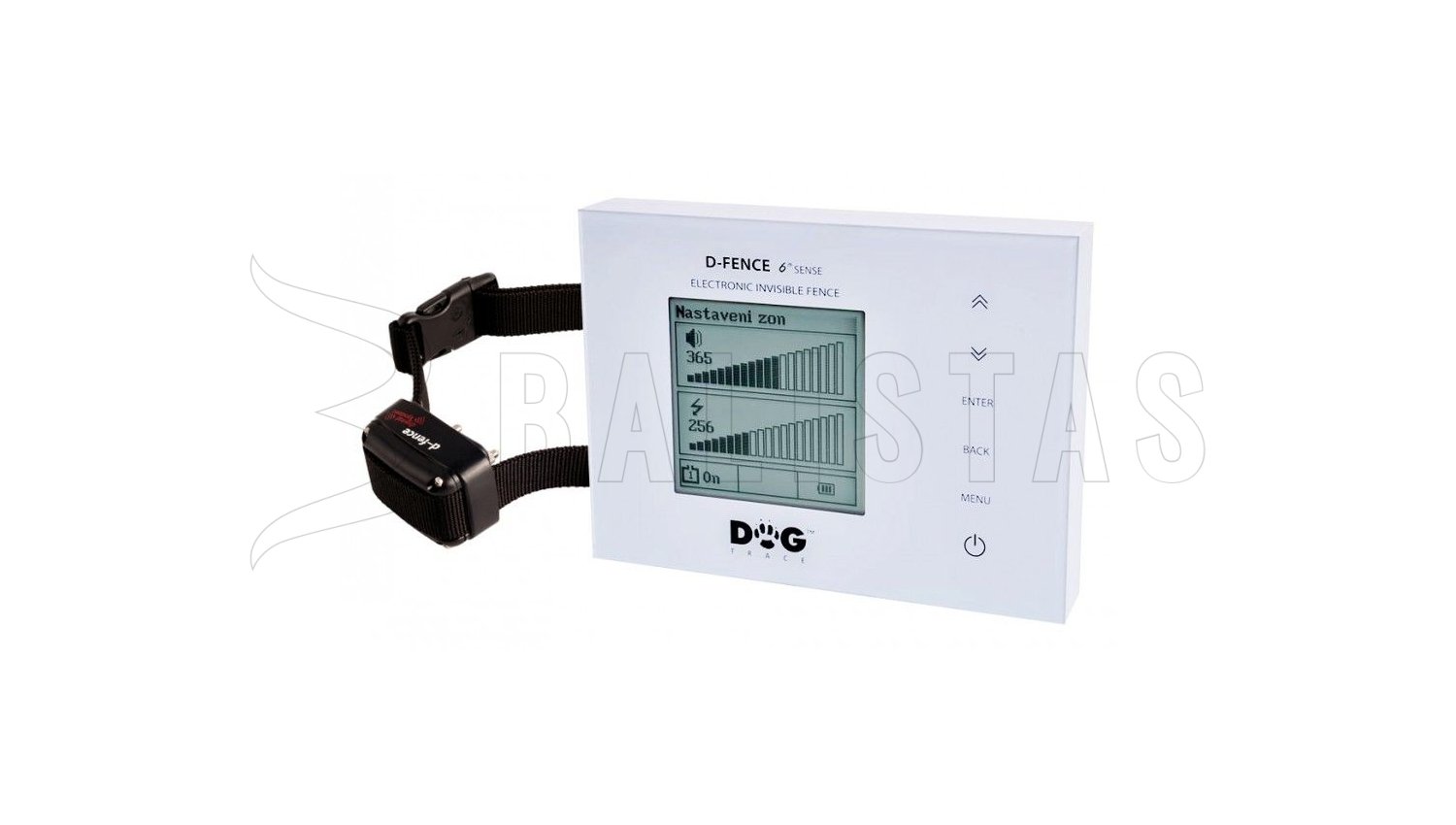

Dogtrace d-fence 202 is an improved version of the invisible fence. It offers a unique way of defining your dog’s movement on your property. The dog will move freely only in areas where there is no danger and where it cannot cause any damage. It consists of a transmitting generator with a backup battery, a receiver and an antenna. The antenna is a simple insulated wire. The antenna wire must be purchased separately for this product.

The generator sends a signal to the antenna wire, which you use to define the selected area with a warning zone and a correction zone. Thanks to the backup battery, the generator can operate even during a power outage, for up to 16 hours. The receiver attached to the dog’s collar detects the signal coming from the installed antenna wire. If the dog crosses the boundary of the warning zone, the collar starts emitting an intermittent sound signal. If the dog does not react to the sound warning and also crosses the boundary of the correction zone, the collar emits both a sound signal and a correction impulse. You can easily adjust the intensity of the correction impulse as well as the width of both the correction and warning zones.

The number of dogs with a receiver attached to the collar is not limited. The collar is compact and waterproof, and thanks to its low weight and ergonomic design it is suitable for all dog breeds. The set is suitable for installation with a wire length of up to 2200 m. For different lengths you need to choose a suitable cross-section of the antenna wire.

You can use the device in any type of terrain and its installation is very simple. For the invisible fence system to work, you must connect the wire to the transmitter and create an uninterrupted loop of wire (avoid damaging it). From the transmitter you unwind the wire around the property. You can lay the wire on the ground, bury it underground (max. 10 cm deep), or fix it to an existing fence or wall (max. 30 cm above the ground).

You can also purchase additional packs of antenna wire and connect them using insulation displacement connectors. If you want the dog to be able to pass freely through a specific area on the property where the wire must run, wind the outgoing wire around the incoming one. Twisting the conductors together cancels out the signal and the dog can pass through this point.

Main advantages

 • antenna wire length up to 2200 m
 • backup battery capable of powering the system for up to 16 hours during a power outage
 • you can keep any number of dogs within the defined area
 • easy and quick installation (operational within an hour)
 • inexpensive and highly flexible fencing option for your property
 • the fence is “invisible”, so it does not obstruct the view of the surroundings
 • can complement an existing fence that the dog still manages to get over
