Invisible fence Dogtrace d-fence 202 black

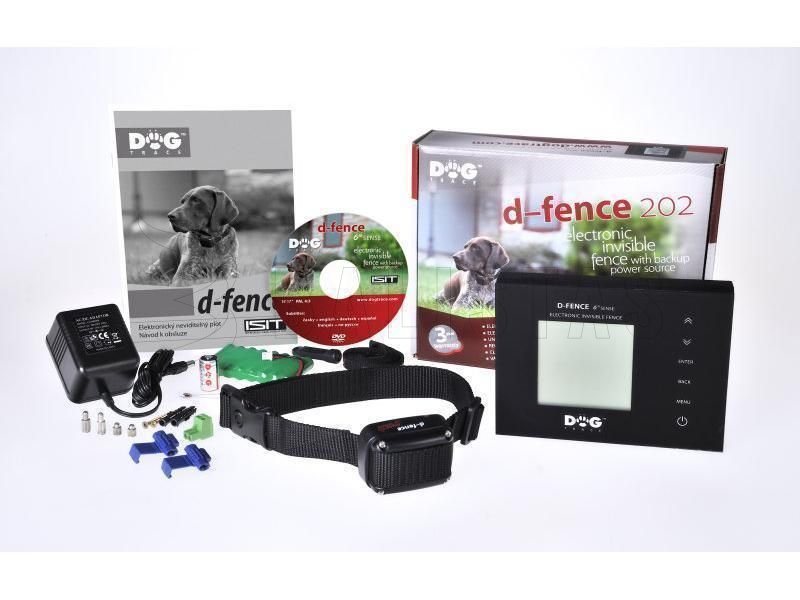

Dogtrace d-fence 202 is an improved version of the invisible fence. It offers a unique way of defining your dog’s movement on your property. The dog will move freely only in areas where there is no danger and where it cannot cause any damage. The system consists of a transmitting generator with a backup battery, a receiver and an antenna. The antenna is a simple insulated wire. The antenna wire must be purchased separately for this product.

The generator sends a signal into the antenna wire, which is used to mark out the selected area with a warning zone and a correction zone. Thanks to the battery, the generator can operate even during a power outage for up to 16 hours. The receiver attached to the dog’s collar detects the signal emitted from the installed antenna wire. If the dog crosses the boundary of the warning zone, the collar starts emitting an intermittent sound signal. If the dog does not react to the sound warning and also crosses the boundary of the correction zone, the collar will emit both a sound signal and a correction pulse. You can easily adjust the intensity of the correction pulse as well as the width of both the correction and warning zones.

The number of dogs wearing a receiver on their collar is not limited. The collar is compact and water-resistant, and thanks to its low weight and ergonomic design it is suitable for all dog breeds. The set is suitable for installation with a wire length of up to 2200 m. For different lengths, it is necessary to select a suitable cross-section of the antenna wire.

You can use the device in any type of terrain and its installation is very simple. For the invisible fence system to work, you must connect the wire to the transmitter and create an unbroken loop of wire (avoid damaging it). From the transmitter, run the wire around the perimeter of your property. You can lay the wire on the ground, bury it underground (max. 10 cm deep), or attach it to an existing fence or wall (up to a maximum height of 30 cm above the ground).

You can also buy additional packs of antenna wire and connect them using insulation displacement connectors. If you want the dog to be able to pass freely through a specific place on the property where the wire must run, wind the outgoing wire around the incoming one. Twisting the conductors together cancels the signal and the dog can pass through at that point.

Main advantages

• antenna wire length up to 2200 m
• backup battery capable of powering the system for up to 16 hours during a power outage
• you can keep any number of dogs within the defined area
• easy and quick installation (operational within an hour)
• inexpensive and highly flexible fencing option for your property
• the fence is “invisible”, so it does not obstruct the view of the surroundings
• can be used to reinforce an existing fence that the dog still manages to get over
