Invisible Fence Dogtrace d-fence 2002 - white

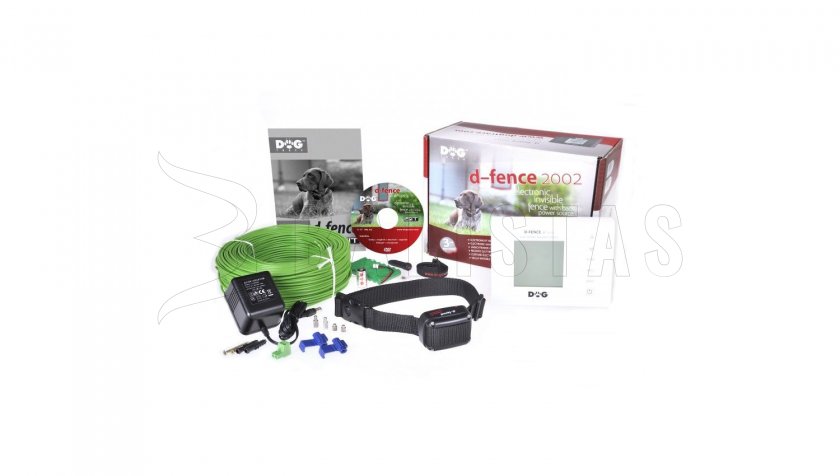

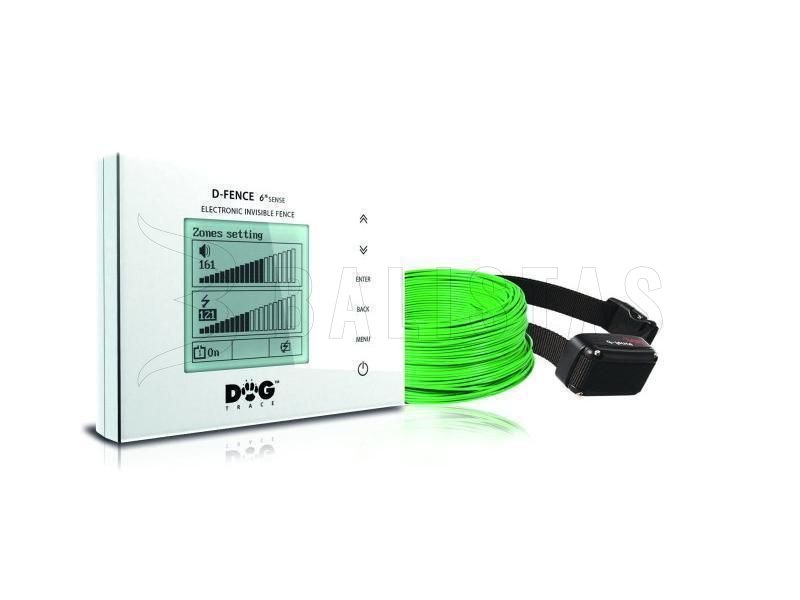

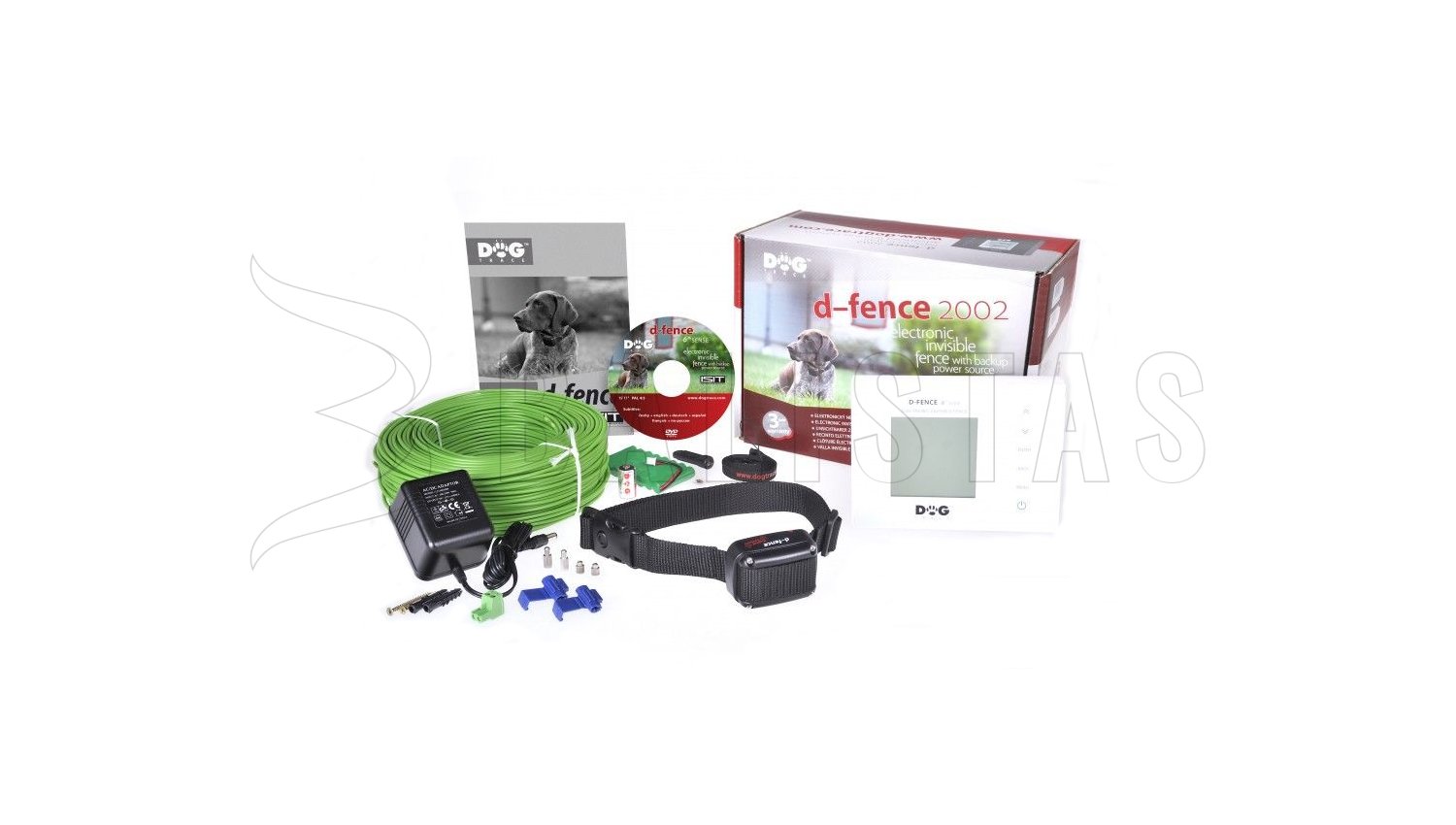

Dogtrace d-fence 2002 is an improved version of an invisible fence. It offers a unique way of defining the dog’s movement on your property. The dog will move freely only in areas where there is no danger to him and where he cannot cause any damage. The system consists of a transmitting generator with a backup battery, a receiver and an antenna. The antenna is a simple insulated wire. The antenna wire must be purchased separately for this product.

The generator transmits a signal to the antenna wire, with which you can mark out the selected area with a warning and a correction zone. Thanks to the built‑in battery, the generator can operate even during a power outage, for up to 16 hours. The receiver attached to the dog’s collar detects the signal emitted from the installed antenna wire. If the dog crosses the boundary of the warning zone, the collar starts emitting an intermittent sound signal. If the dog does not react to the sound warning and also crosses the boundary of the correction zone, the collar emits a sound signal and a correction impulse at the same time. You can easily adjust the intensity of the correction impulse as well as the width of both the correction and warning zones.

The number of dogs with a receiver attached to their collar is not limited. The collar is compact and waterproof, and thanks to its low weight and ergonomic design it is suitable for all dog breeds. The set is suitable for installations with a wire length of up to 2200 m. For different lengths it is necessary to choose a suitable cross‑section of the antenna wire.

You can use the device in any type of terrain and its installation is very simple. For the invisible fence system to work, you must connect the wire to the transmitter and create an unbroken loop of wire (avoid damaging it). From the transmitter, you unwind the wire around the perimeter of the property. The wire can be laid on the ground, buried underground (max. 10 cm deep), or attached to an existing fence or wall (up to 30 cm above the ground).

The package also includes an antenna wire with a length of 100 m and a cross‑section of 0.75 mm2. If you need a longer wire, you can purchase additional packs and connect them using insulation‑displacement connectors. The wire is always sold in 100 m packs. If you want the dog to be able to move freely through a certain area on the property where the wire must run, wind the outgoing wire around the incoming wire. Twisting the conductors together cancels the signal and the dog can pass through that section.

Main advantages

• antenna wire length up to 2200 m
• backup battery capable of powering the system for up to 16 hours during a power outage
• you can keep any number of dogs within the defined area
• easy and quick installation (operational within an hour)
• inexpensive and highly versatile alternative to conventional fencing
• the fence is “invisible”, so it does not obstruct the view
• can be used to complement an existing fence that the dog still manages to get over
