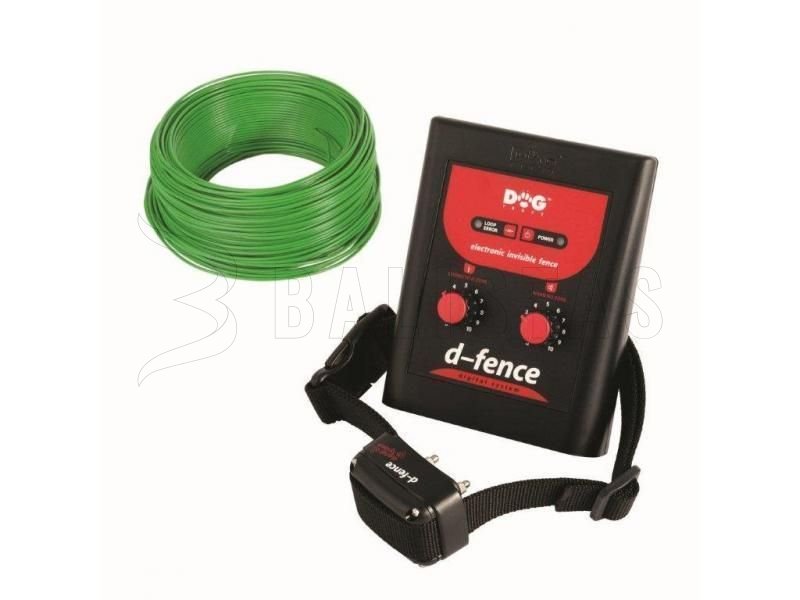

Invisible fence Dogtrace d-fence 101

Invisible fence Dogtrace d-fence 101 offers a unique way to limit your dog’s movement on your property. The dog will move freely only in areas where there is no danger or where it cannot cause any damage. It consists of a transmitting generator, a receiver and an antenna. The antenna is a simple insulated wire. You need to purchase the antenna wire separately for this product.

The generator sends a signal into the antenna wire, which you use to mark out the selected area with a warning zone and a correction zone. The receiver attached to the dog’s collar detects the signal emitted from the installed antenna wire. If the dog crosses the boundary of the warning zone, the collar starts to emit an intermittent sound signal. If the dog does not react to the sound warning and also crosses the boundary of the correction zone, the collar will emit a sound signal and a correction pulse simultaneously. You can easily adjust the intensity of the correction pulse as well as the width of both the correction and warning zones.

The number of dogs with a receiver attached to the collar is not limited. The collar is compact and water-resistant and, thanks to its low weight and ergonomic design, it is suitable for all dog breeds. The set is suitable for installation with wire lengths of up to 1200 m. For different lengths, it is necessary to choose a suitable cross-section of the antenna wire.

You can use the device in any type of terrain and its installation is very simple. For the invisible fence system to work, you must connect the wire to the transmitter and create an unbroken loop of wire (avoid damaging it). From the transmitter, unwind the wire around the property. You can lay the wire on the ground, bury it underground (max. 10 cm deep), or attach it to an existing fence or wall (max. 30 cm above the ground).

The package also includes an antenna wire with a length of 100 m and a cross-section of 0.75 mm2. If you need a longer wire, you can buy additional packs and connect them using insulation displacement connectors. The wire is always sold in 100 m packs. If you want the dog to be able to pass freely through a certain place on the property where you have to run the wire, wind the outgoing wire around the incoming one. Twisting the conductors together cancels the signal and the dog can pass through this section.

Main advantages

 • you can keep any number of dogs within the defined area
 • easy and quick installation (operational within one hour)
 • inexpensive and highly flexible alternative to traditional fencing
 • the fence is “invisible”, so it does not obstruct the view
 • can be added to an existing fence that the dog still manages to get over
